Default Shaving a Tokina 10-17mm lens

Shaving a Tokina 10-17mm lens, Same works for the Nikon 10.5mm

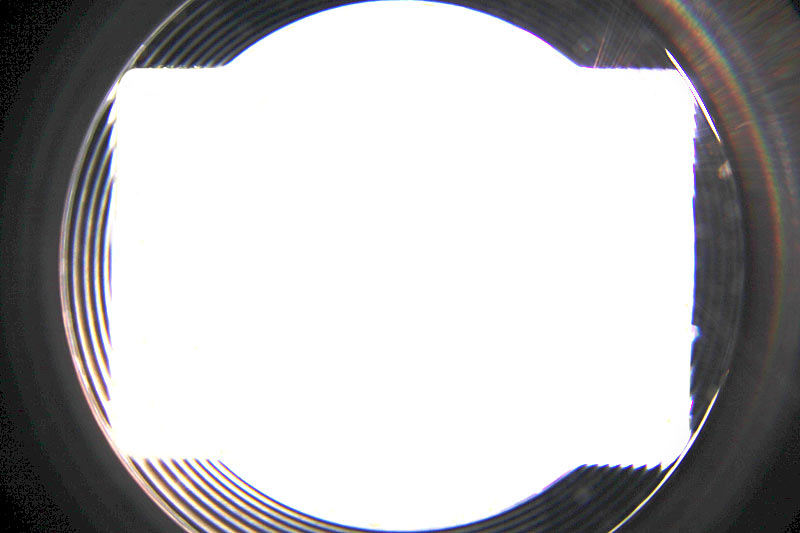

On a full frame camera this is what you will see before shaving the lens hood on the Tokina 10-17mm lens
http://www.indiavrtours.com/pic/tokina10-17hood.jpg

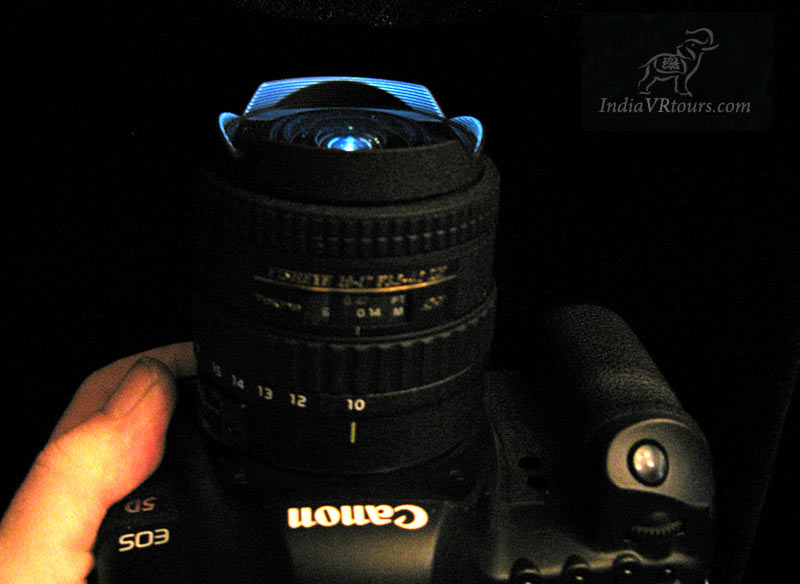

Shinning a bright LED flashlight through the viewfinder you can see the areas that need to be shaved off.
http://www.indiavrtours.com/pic/tokina10-17mm.jpg

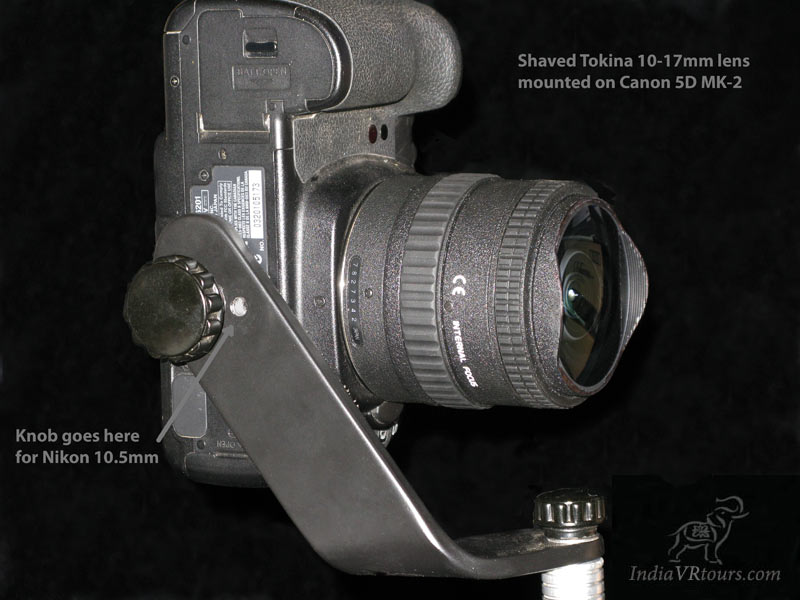

After shaving the lens like this you will still have some lens protection and the lens cap will stay on nicely.
Had a problem finding flat black paint before taking this photo.
http://www.indiavrtours.com/pic/toki...7mm_shaved.jpg

Roger Berry
__________________
Only those who will risk going too far
can possibly find out how far one can go.
Reply With Quote
  #2
Old 07-06-2011, 04:39 AM
faria2159 faria2159 is offline
Junior Member

Join Date: Jun 2011
Posts: 1
Downloads: 0
Uploads: 0
Default

I didn't know that. Anyway thanks for sharing this.
